Ultra Low Temperature Process Chillers

Thermonics® offers a range of portable process chillers for low (-40°C) and ultra-low (-100°C) cooling. Products include air-cooled, water-cooled, and our unique, liquid nitrogen cooled chillers. All of our chillers are portable systems designed for cooling gasses or fluids across a wide range of industrial and mil/aero applications.

Our process chillers are compatible with a variety of heat transfer fluids, with cooling capacities up to 25kW at -90°C.

We are a USA based manufacturer with ISO and ITAR registrations.

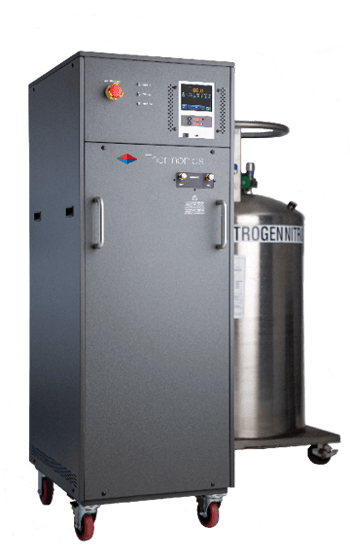

LN₂ Cooled Chiller

-80°C, Cooling Capacity 25kW
Capable of providing 150 gallons per hour of ethanol at -60°C

Electrical Power Requirements:
220V / 60 Hz, 3 phase
15A service, 3.7 kW/hr

Temperature Range
-80°C to +30°C

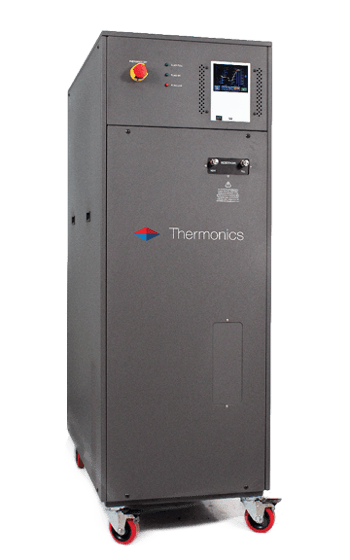

Water Cooled Chiller

-80°C, Cooling Capacity 5kW
Capable of providing 36 gallons per hour of ethanol at -60°C

Electrical Power Requirements:
480V / 60 Hz, 3 phase
50A service, 36 kW/hr

Temperature Range
-60°C to +30°C

Cooling Capacity
4.6 kW @ -80°C

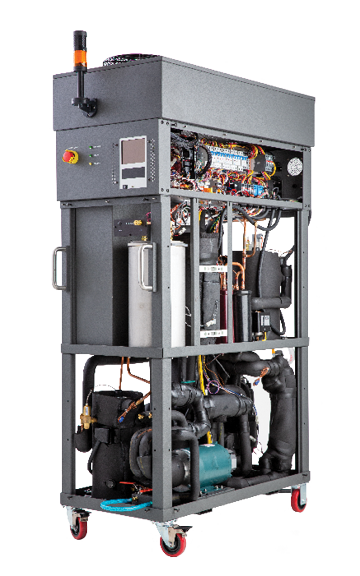

Air Cooled Chiller

-80°C, Cooling Capacity 2.5kW
Capable of providing 18 gallons per hour of ethanol at -60°C

Electrical Power Requirements:
480V / 60 Hz, 3 phase, 40A service, 25 kW/hr

Temperature Range
-80°C to +30°C

Cooling Capacity
5 kW @ -80°C
