Temptronic ThermoSpot

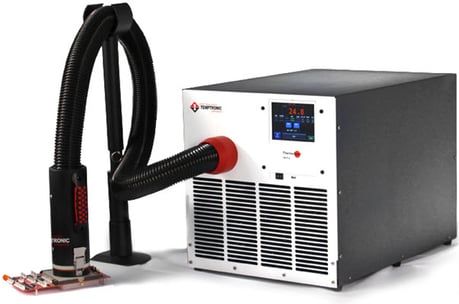

The Temptronic® ThermoSpot family of benchtop direct contact systems provide an efficient source for IC temperature characterization, including high-Watt emitting devices. Highly responsive and reliable, the unit feeds a thermal probe head through a flexible umbilical – without the use of thermoelectric modules. The thermal probe is designed with an interchangeable ThermoBridgeTM to mate directly to your IC or other device under test.

Using proprietary, robust refrigeration technology ThermoSpot can perform thermal cycling without the worry of cooling degradation so common with thermoelectric modules employed in competitive systems. Furthermore, these systems provide the highest cooling capacity of direct contact systems on the market today.

  • High reliability thermal cycling without thermoelectric modules
  • Temperature range: -65 to 175°C
  • Cooling power:
    • 40W at -40°C for lower power devices
    • 55W at -55°C and 120W at -40°C.
  • Transition rate: up to <35 sec over 25 to -40°C
  • Easy and secure thermal connection to in-circuit or test socked DUT
  • Touch-screen controller: user-programmable temperatures, graphing, data logging
  • Communications options: Ethernet, USB, IEEE, RS232

Here's More Information

ThermoSpot Model Data Sheets for US Installations

Temptronic® ThermoSpot® DCP-201 Bench Top Temperature Forcing System

ThermoSpot ThermoSpot

The ThermoSpot Model DCP-201 benchtop temperature forcing system provides a highly responsive, thermally conductive path to quickly induce temperatures to the DUT.

Power Requirements

Transition Rates
Heating:
Cooling:

Get the data sheet: Temptronic® ThermoSpot® DCP-201 Bench Top Temperature Forcing System


Temptronic® ThermoSpot® DCP-202 Bench Top Temperature Forcing System

ThermoSpot ThermoSpot

The ThermoSpot Model DCP-202 benchtop temperature forcing system provides a highly responsive, thermally conductive path to quickly induce temperatures to the DUT.

Power Requirements

Transition Rates
Heating:
Cooling:

Get the data sheet: Temptronic® ThermoSpot® DCP-202 Bench Top Temperature Forcing System


ThermoSpot Model Data Sheets for International Installations

Temptronic® ThermoSpot® DCP-101 Bench Top Temperature Forcing System

ThermoSpot ThermoSpot

The ThermoSpot Model DCP-101 benchtop temperature forcing system provides a highly responsive, thermally conductive path to quickly induce temperatures to the DUT.

Power Requirements

Transition Rates
Heating:
Cooling:

Get the data sheet: Temptronic® ThermoSpot® DCP-101 Bench Top Temperature Forcing System


Temptronic® ThermoSpot® DCP-102 Bench Top Temperature Forcing System

ThermoSpot ThermoSpot

The ThermoSpot Model DCP-102 benchtop temperature forcing system provides a highly responsive, thermally conductive path to quickly induce temperatures to the DUT.

Power Requirements

Transition Rates
Heating:
Cooling:

Get the data sheet: Temptronic® ThermoSpot® DCP-102 Bench Top Temperature Forcing System
