Temptronic

ECO ThermoStream®

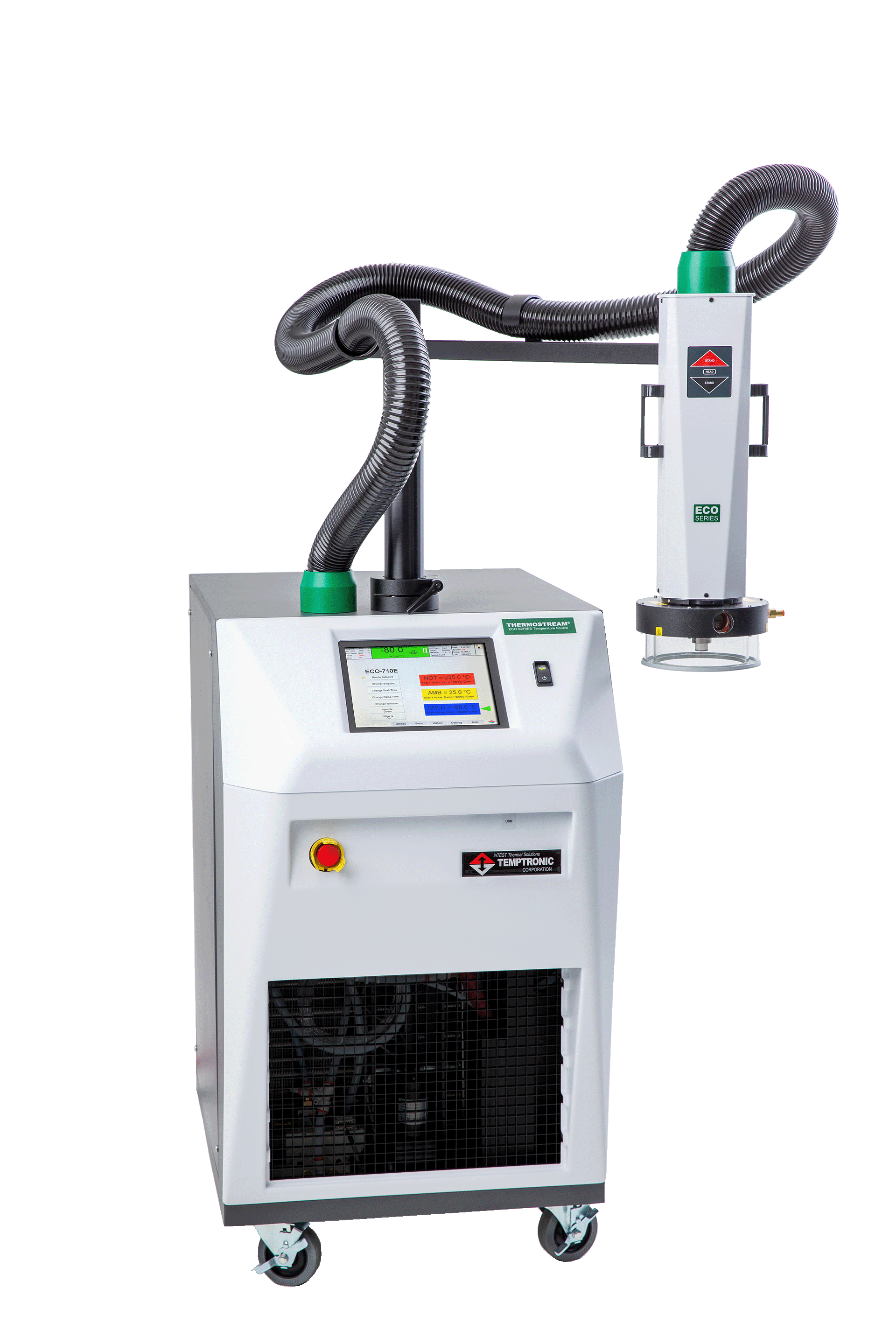

Temptronic ECO series thermal test system

Eco-friendly Electronics Temperature Test Systems

Consumes less energy, quiet operation, no annual leak testing required (EU F-Gas Regulation)

The ECO Series is an environmentally friendly Temptronic® ThermoStream® temperature forcing system that uses less energy with ECO series thermal test system very low audible noise. The temperature test system operates on a low, 20-amp circuit and incorporates the company's proprietary technology providing quiet, smooth-sounding operation at 56 dBA. The ECO-710 and ECO-810 are designed for 24/7/365 day use in production or lab environments where audible noise, heat dissipation, and energy usage are of concern.

Furthermore, the ECO system frees you from the time and expense of annual leak testing because its gas charge is below the CO2 equivalent limit for greenhouse gas emissions as specified in the EU 517/2014 regulation. After 2016, all refrigeration systems shipped to EU countries, portable and stationary, will require labeling of gases used, their weight, and CO2 equivalent. Any refrigeration system with a charge of 10 tonnes or greater will require annual leak checking.

  • Precise temperatures with fast transitions from -80 to 225°C
  • No annual leak testing required per EU 517/2014 F-Gas Regulation
  • Effective testing and conditioning of electronic components, boards, and modules
  • Available for 50 and 60Hz operation
  • No need for Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)

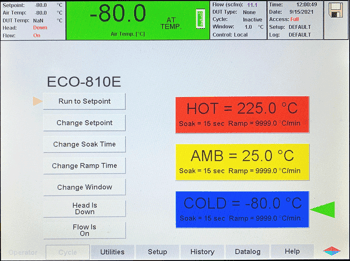

  • Remote communications and set up and touch screen operation

ECO systems complement the performance of the industry standard ATS ThermoStream product line.

Here's More Information

ThermoStream Model Data Sheets for US Installations

ECO-810M ThermoStream®

ECO-810-M ThermoStream

Temptronic® ECO Series temperature forcing systems use less energy with very low audible noise. Operate on a low, 20-amp circuit and incorporate the company’s proprietary WhisperStreamTM technology for quiet, smooth-sounding operation at 56 dBA. Designed for environments where noise and heat dissipation are of concern, and meets the EU F-Gas regulation where no annual leak testing is required.

Power Requirements

200 - 250 VAC, 60Hz only, 20 amp, 1phase

Transition Rates
Heating: -55 to +125°C, <10
Cooling: +125 to -55°C, <10

Get the data sheet: ECO-810M ThermoStream®


ThermoStream Model Data Sheets for International Installations

ECO-710M ThermoStream®

ECO-710-M ThermoStream

Temptronic® ECO Series temperature forcing systems use less energy with very low audible noise. Operate on a low, 20-amp circuit and incorporate the company’s proprietary WhisperStreamTM technology for quiet, smooth-sounding operation at 56 dBA. Designed for environments where noise and heat dissipation are of concern, and meets the EU F-Gas regulation where no annual leak testing is required.

Power Requirements

200 - 250 VAC (230V nominal), 50/60Hz, 20 amp, 1phase

Transition Rates
Heating: -55 to +125°C, <10
Cooling: +125 to -55°C, <10

Get the data sheet: ECO-710M ThermoStream®


ThermoStream Brochures

Hood Style ThermoChamber

Get our brochure: Hood Style ThermoChamber


Clamshell Style Thermo chamber

Get our brochure: Clamshell Style Thermo chamber


Front-Load Style Temperature Chamber

Get our brochure: Front-Load Style Temperature Chamber


T-Caps, Shrouds, and Mats for Temperature Forcing Enclosures

Get our brochure: T-Caps, Shrouds, and Mats for Temperature Forcing Enclosures


High Performance Air Dryer

Get our brochure: High Performance Air Dryer


Automated Thermal Testing of Power Devices

Get our brochure: Automated Thermal Testing of Power Devices


Temptronic mobile, high speed temperature environment

Get our brochure: Temptronic mobile, high speed temperature environment


Thermal Stress Testing: Breaking Old Habits

Get our brochure: Thermal Stress Testing: Breaking Old Habits
