Sigma Systems Thermal Chamber



Optimal test environments require thermal chambers configured for device size, temperature range, transition speed and device access. Sigma Systems' chamber capabilities include:

  • High air flow, promoting fast cycling, low gradients, and consistent test results
  • Wide temperature range: -185 to 500°C or anywhere in between
  • Industry’s smallest footprint for given interior work space
  • Cooling and heating rates up to 100°C per minute
  • Thermal shock in a single chamber and MIL-STD testing

The best thermal environment comes from specifications you control.

Cryogenic Based Thermal Chambers

Cryo Chamber Temperature Ranges:

Liquid Nitrogen (LN2) Cooled: -100 to +200°C (optionally from -185° to 500°C)
Liquid Carbon Dioxide (LCO2) Cooled: -65 to +200C (optionally to 500°C)

Model Interior Dimensions (H"xW"xD") Links
M10 9x10x7.5 Product Page
Data Sheet
M26 10.6x10x10
M33 15x13.5x10
M42 15x13.5x10
M58 13.5x19.5x13.5 Product Page
Data Sheet
M59 11.6x19.5x16
M88 18x20x14.5
M90 15.5x25x14.5
M170 25.1x20.5x19.6 Product Page
Data Sheet
M256 25x25x24.9 Product Page
Data Sheet
M360 28x28x28
M443 30x30x29.9
M765 36x36x36

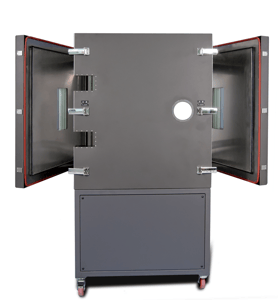

Dual Access Chambers

With two doors, typically a front and back

Model Interior Dimensions (H"xW"xD") Links
M173 32x21x17.5
M369 30x25x31.5
M786 36x36x35

Compressor Based Thermal Chambers

Chamber Temperature Ranges:

Single stage: -35 to +200°C
Cascade: -60 to +200C

Optionally, wider temp ranges available

Model Interior Dimensions (H"xW"xD") Links
M33 15x13.5x10
M58 13.5x19.5x13.5 Product Page: M58 Cryogenic Temperature Chamber
Get the data sheet: M58 Cryogenic Temperature Chamber
M59 11.6x19.5x16
M88 18x20x14.5
M90 15.5x25x14.5
M170 25.1x20.5x19.6 Product Page: M170 Cryogenic Temperature Chamber
Get the data sheet: M170 Cryogenic Temperature Chamber
M256 25x25x24.9 Product Page: M256 Cryogenic Temperature Chamber
Get the data sheet: M256 Cryogenic Temperature Chamber
M360 28x28x28
M443 30x30x29.9
M765 36x36x36



Dual Access Chambers

With two doors, typically front and back

Model Interior Dimensions (H"xW"xD") Links
M173 32x21x17.5
M369 30x25x31.5
M786 36x36x35
