Ultra Low Temperature Process Cooling Applications Thermonics Chillers

Thermonics® chillers are used in many industries including Energy, Chemical Processing, Industrial, and Semiconductor. Here are some application examples:

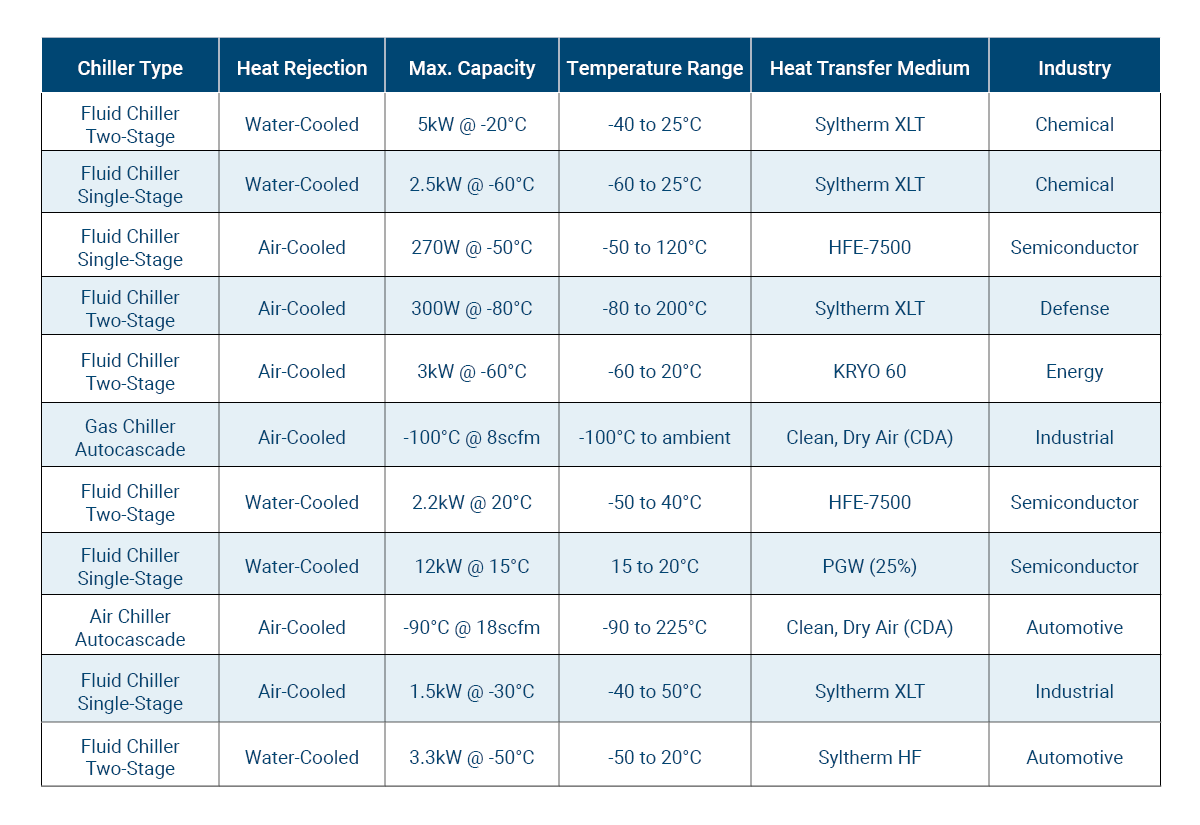

Chiller Type	Heat Rejection	Max. Capacity	Temperature Range	Heat Transfer Medium	Industry
Fluid Chiller Two-Stage	Water Cooled	5kW @ -20°C	-40 to 25°C	Syltherm XLT	Chemical
Fluid Chiller Single-Stage	Water Cooled	2.5kW @ -60°C	-60 to 25°C	Syltherm XLT	Chemical
Fluid Chiller Single-Stage	Air Cooled	270W @ -50°C	-50 to 120°C	HFE-7500	Semiconductor
Fluid Chiller Two-Stage	Air Cooled	300W @ -80°C	-80 to 200°C	Syltherm XLT	Defense
Fluid Chiller Two-Stage	Air Cooled	3kW @ -60°C	-60 to 20°C	KRYO 60	Energy
Gas Chiller Autocascade	Air Cooled	-100C @ 8scfm	-100°C to ambient	Clean, Dry, Air (CDA)	Industrial
Fluid Chiller Two-Stage	Water Cooled	2.2kW @ 20°C	-50 to 40°C	HFE-7500	Semiconductor
Fluid Chiller Single-Stage	Water Cooled	12kW @ 15°C	15 to 20°C	PGW (25%)	Semiconductor
Air Chiller Autocascade	Air Cooled	-90C @ 18scfm	-90 to 225°C	Clean, Dry, Air (CDA)	Automotive
Fluid Chiller Single-Stage	Air Cooled	1.5kW @ -30°C	-40 to 50°C	Syltherm XLT	Industrial
Fluid Chiller Two-Stage	Water Cooled	3.3kW @ -50°C	-50 to 20°C	Syltherm HF	Automotive
