Thermonics

Low Temperature Chillers

Low Temperature Fluid Chillers

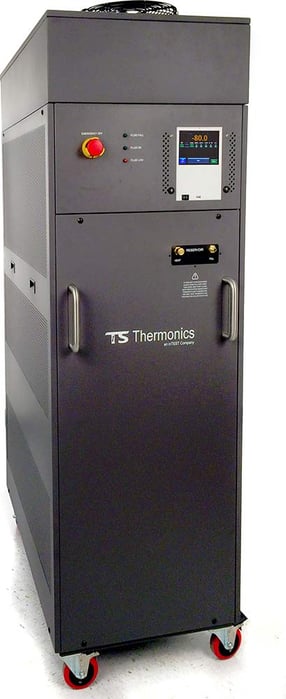

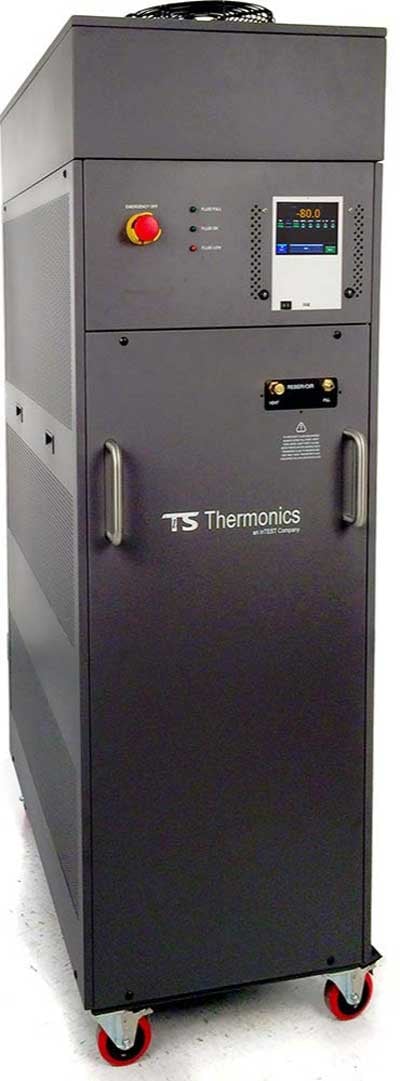

Air-Chiller-Face-Right-NoScreens-1
Thermonics Low Temperature Chillers

Thermonics® designs low (-80.0°C) and ultra-low temperature (-120.0°C) chillers for cooling fluids and gasses in process cooling applications. Our chiller systems include fluid chillers, gas chillers, and cryogenically cooled  (LN2, LCO2) chillers. Systems are available in:

  • 9 water-cooled models (details below)
  • 9 air-cooled models (details below)
  • all models compatible with a variety of heat transfer fluids.

Standard and Custom Chiller Systems

  • Temperature ranges from -100 to 300°C
  • Cooling capacities up to 30kW
  • Air or water cooled condensers
  • Pumps and process fluids to match application

Our process chillers are used in a variety of industries including: chemical, energy, semiconductor, aerospace, defense, automotive, and more. We are an ITAR and ISO 9001:2015 registered company.

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-60-3000 FluidChill™ system delivers high reliability and precision temperature control.

Here's More Information

Water-Cooled Chillers Models

Process Chiller W-40-1100

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-40-1100 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -40 to +50 °C

Capacity: 1.1kW @ -40°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-40-1100


Process Chiller W-40-2000

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-40-2000 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -40 to +50 °C

Capacity: 2.0kW @ -40°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-40-2000


Process Chiller W-40-3100

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-40-3100 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -40 to +50 °C

Capacity: 3.1kW @ -40°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-40-3100


Process Chiller W-60-2800

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-60-2800 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -60 to +50 °C

Capacity: 2.8kW @ -60°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-60-2800


Process Chiller W-60-3100

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-60-3100 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -60 to +50 °C

Capacity: 3.1kW @ -60°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-60-3100


Process Chiller W-60-4700

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-60-4700 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -60 to +50 °C

Capacity: 4.7kW @ -60°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-60-4700


Process Chiller W-80-600

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-80-600 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -80 to +50 °C

Capacity: 0.6kW @ -80°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-80-600


Process Chiller W- 80-1800

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W- 80-1800 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -80 to +50 °C

Capacity: 1.8kW @ -80°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W- 80-1800


Process Chiller W-80-2500

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The W-80-2500 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -80 to +50 °C

Capacity: 2.5kW @ -80°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller W-80-2500


Air-Cooled Chiller Models

Process Chiller A-40-1100

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-40-1100 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -40 to +50 °C

Capacity: 1.1kW @ -40°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-40-1100


Process Chiller A-40-1900

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-40-1900 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -40 to +50 °C

Capacity: 1.9kW @ -40°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-40-1900


Process Chiller A-40-2700

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-40-2700 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -40 to +50 °C

Capacity: 2.7kW @ -40°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-40-2700


Process Chiller A-60-2700

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-60-2700 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -60 to +50 °C

Capacity: 2.7kW @ -60°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-60-2700


Process Chiller A-60-3000

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-60-3000 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -60 to +50 °C

Capacity: 3.0kW @ -60°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-60-3000


Process Chiller A-60-4600

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-60-4600 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -60 to +50 °C

Capacity: 4.6kW @ -60°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-60-4600


Process Chiller A-80-500

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-80-500 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -80 to +50 °C

Capacity: 0.5kW @ -80°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-80-500


Process Chiller A- 80-1700

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A- 80-1700 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -80 to +50 °C

Capacity: 1.7kW @ -80°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A- 80-1700


Process Chiller A-80-2400

Thermonics specializes in the design and manufacture of low temperature standard and custom fluid chillers for challenging applications. The A-80-2400 FluidChill™ system delivers high reliability and precision temperature control.

Temperature Range: -80 to +50 °C

Capacity: 2.4kW @ -80°C

Stability: ±0.5 °C

Get the data sheet: Process Chiller A-80-2400


Notes:
1) Fluid pressure for all water-cooled and air-cooled models is 50 PSIG or less.
2) -40 and -60°C performance achieved with Syltherm XLT fluid. -80°C performance achieved with HFE-7100 fluid.
3) Consult factory for applications using other heat transfer fluids and flow rates.
